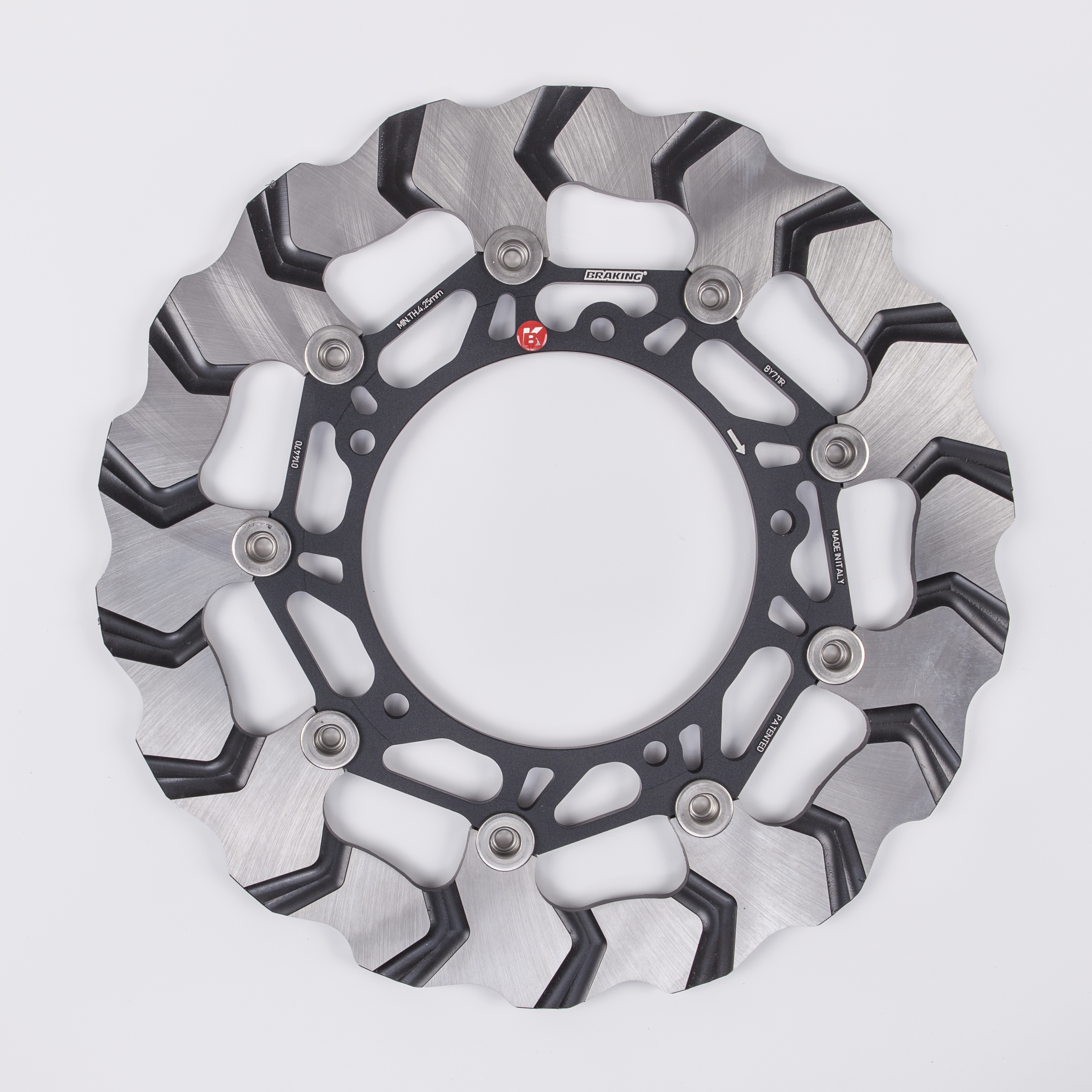

YZF-R6(08-16)Braking brake disc Batfly wave Floating Front-R

TYPE : ONROAD DISK

SERIES : BATFLY STRADA

DESCRIPTION : After testing it for years in the racing world, Braking launched the new BATFLY® rotor. BATFLY® STRADA offers a directional carrier, lighter than the previous version - 9 instead of 12 rivets, a directional seat with a 14° angle and a new outline for the self-ventilating outer ring, which improves the heat dissipation on the ring. This rotor is the result of cooperating with the strongest teams in the world, thus creating a unique product as for brake power progression. Thanks to this new light version, BATFLY® STRADA’s weight is now very similar to the SK2 one.

PART NUMBER : BY7XXL/R

TECHNICAL FEATURES AND BENEFITS : more braking grip > highly reactive less weight > better handling high heat dissipation > stable power in all conditions self ventilating > stable power at high temperatures very high pad-disk contact pressure > highest braking grip light weight > better handling

HOW DOES IT WORK? outer and inner diameter of the disk have a non-round design that enables better radial expansion of the rotor under extreme heat conditions. Moreover piercing holes are replaced by edges specifically designed to grow brake pad regeneration process Alternative grooves on the two surfaces of the disk create a selfventilation mechanism. Mud and dirt are also easily removed from braking surface.

USE : RACE

ACCESSORIES : P1R PADS MC94 – MC74 MASTER CYLINDER TX - RX LINES & FITTINGS WARNING The brake disk is directional. Verify that it mounts correctly by checking the rotational direction marked on the carrier. Always combine new BRAKING pads with the new disk. Run in as per mounting instructions.
