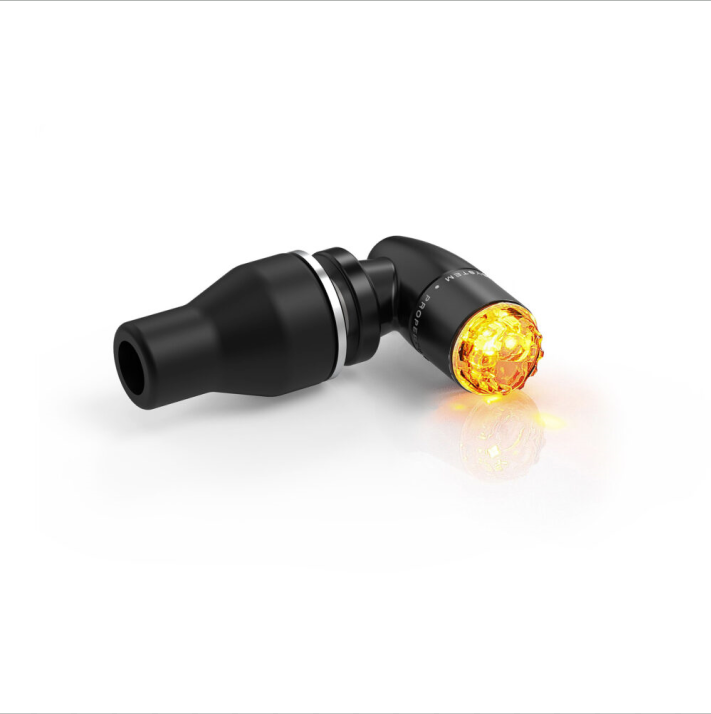

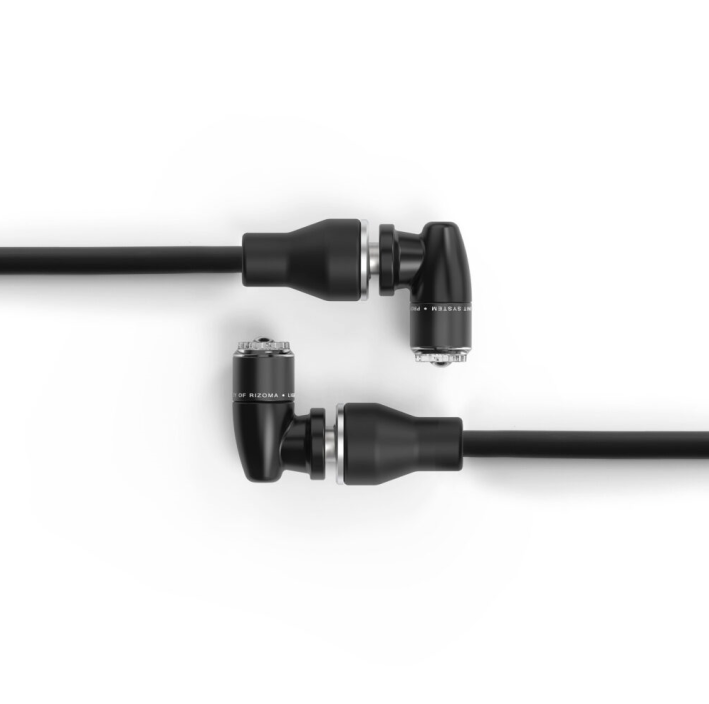

Z1100SE(25-26)Rizoma light unit with technopolmer holder

The Light Unit with technopolymer holder kit, thanks to its latest-generation SMD LED technology, guarantees high lighting intensity and represents one of the smallest option of its product category in compliance with European homologation standards.

A pragmatic design that, despite of its tiny dimensions, perfectly satisfies its function. In Light Unit the light beam develops longitudinally in respect to the turn signal fastening point (instead of at 90°, as most commonly occurs in other turn signals), increasing application ease and mounting possibilities. So, Light Unit, represents a new and innovative concept for Rizoma's turn signals, a light-signaling device that can be effectively fitted in several options according to the specific user’s needs, without sacrificing aesthetic. These plus are actually the cornerstones of its patent.

FR440B technopolymer holder included.

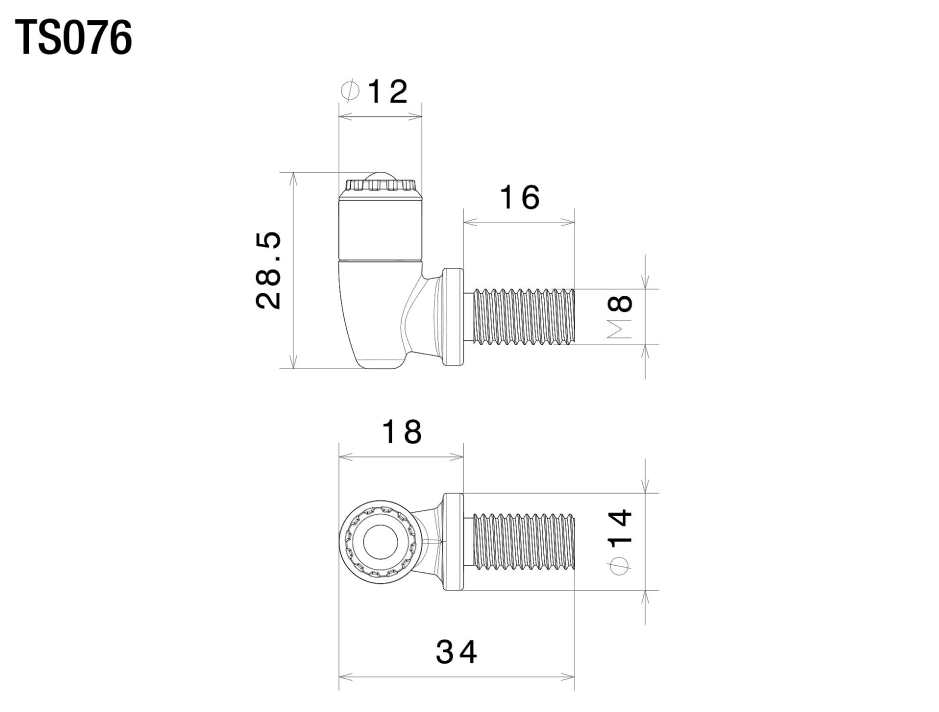

TU076B

HKD 1220 pair



Technical information

Use of the very latest SMD LED technology ensures compliance with European homologation standards.

Functions: TURN SIGNAL (12 V - 1.5 W)

M8 THREAD / Indicator tightening wrench included.

FR440B technopolymer holder included.

To fit the turn signals, the wiring kit is required.



To avoid errors in bikes equipped with a control indicator on the dashboard (only BMW R nine T models from 2017 onwards), we recommend installation of the resistance kits EE149H (3 W - 38 Ω).



The fitting of the Light Unit turn signals provides different options.

FRONT POSITION

- In OEM configuration by using the Rizoma front turn signal mounting kit in combination with technopolymer holder FR440B (included).

REAR POSITION

- In OEM configuration by using the Rizoma rear turn signal mounting kit in combination with technopolymer holder FR440B (included).

- On Rizoma license plate support, which already contains mounting kit for rear turn signals, in combination with technopolymer holder FR440B (included).

The mounting of Light Unit on your bike, both in front and rear options, always requires the appropriate Rizoma turn signal wiring kit which are to be purchased separately.





Front and rear mounting kit information

Mounting kit for turn signals

FR415B

HKD 150

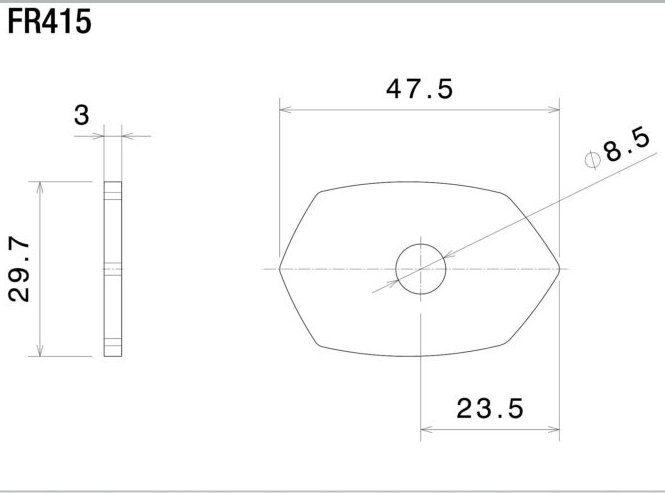

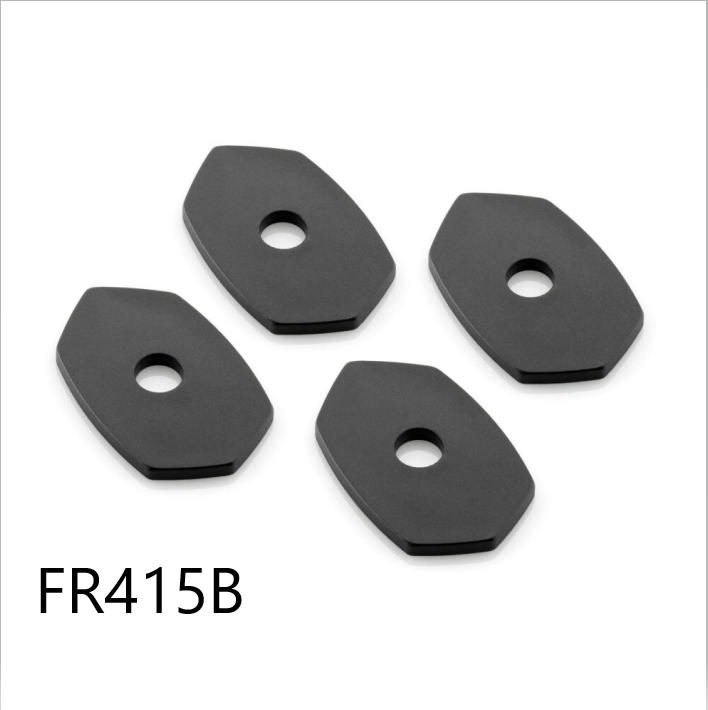

FR415B: Mounting kit for Rizoma front and rear turn signals. One kit contains 4 pieces. These adapters are made of PVC.

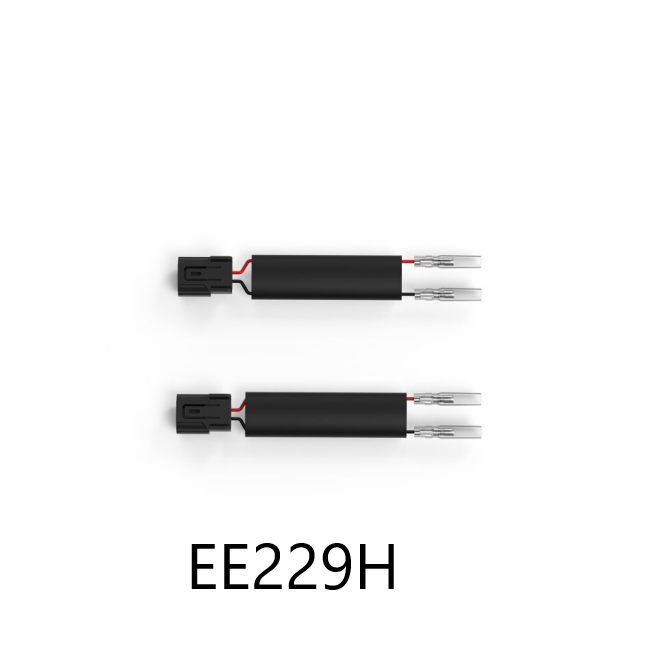

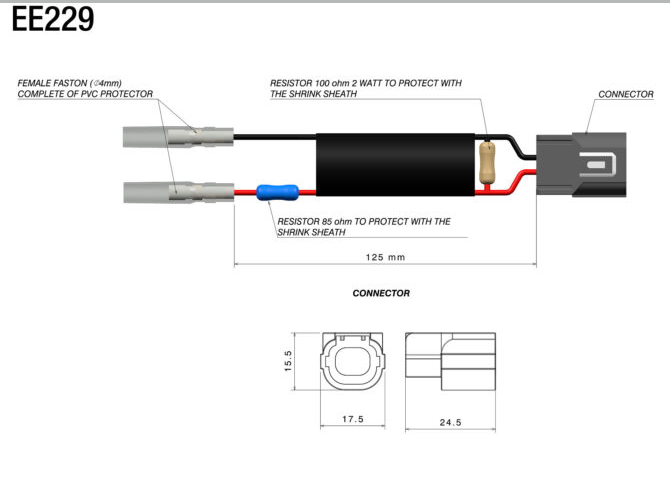

Wiring kit with resistors for Rizoma turn signals

2 W / 100 Ω und 85 Ω

EE229H

HKD 400



Spacer for turn signals

EURO4

TS300B

HKD 390

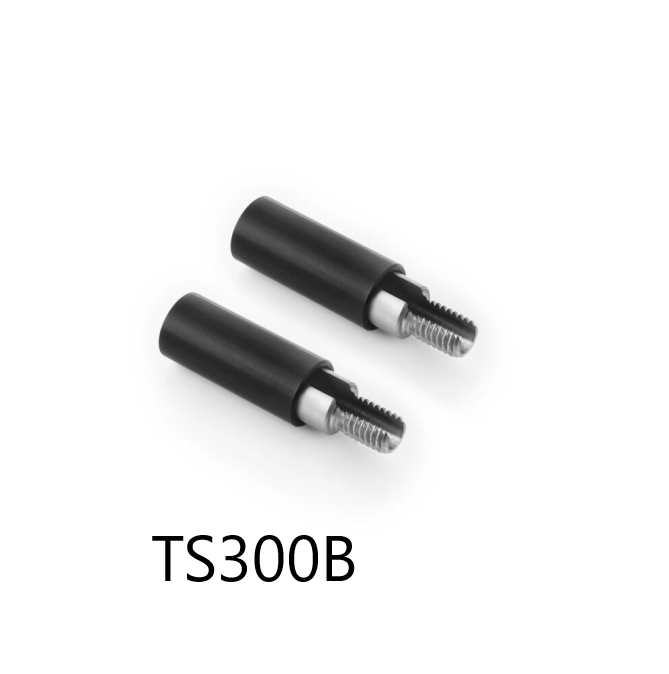

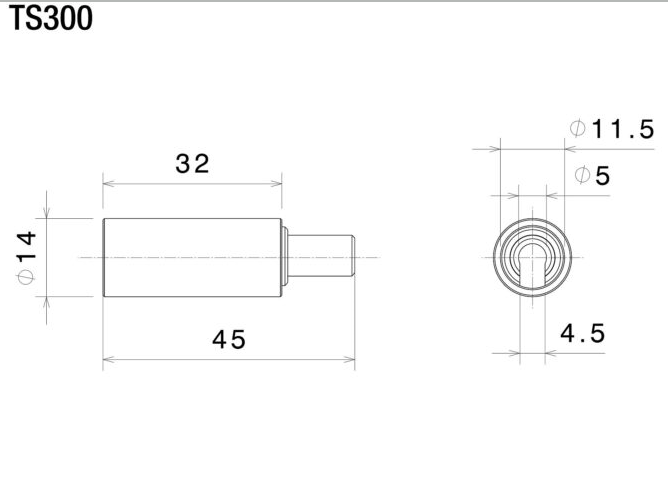

TS300B: spacer for indicators (32 mm), made from black anodized aluminum. Suggested to fulfill the compliance with European standards about the distance between the turn signals.
