CBR600RR(24-26)Rizoma turn signals Layer

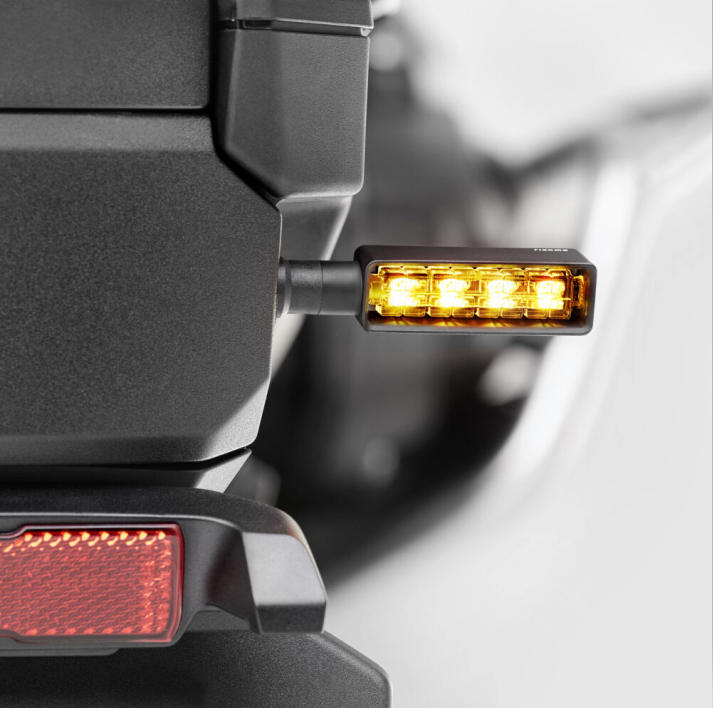

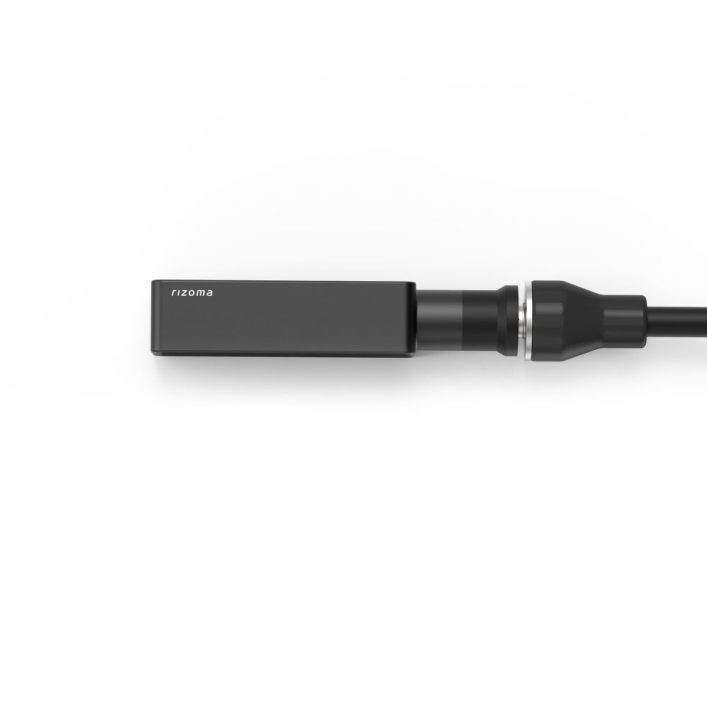

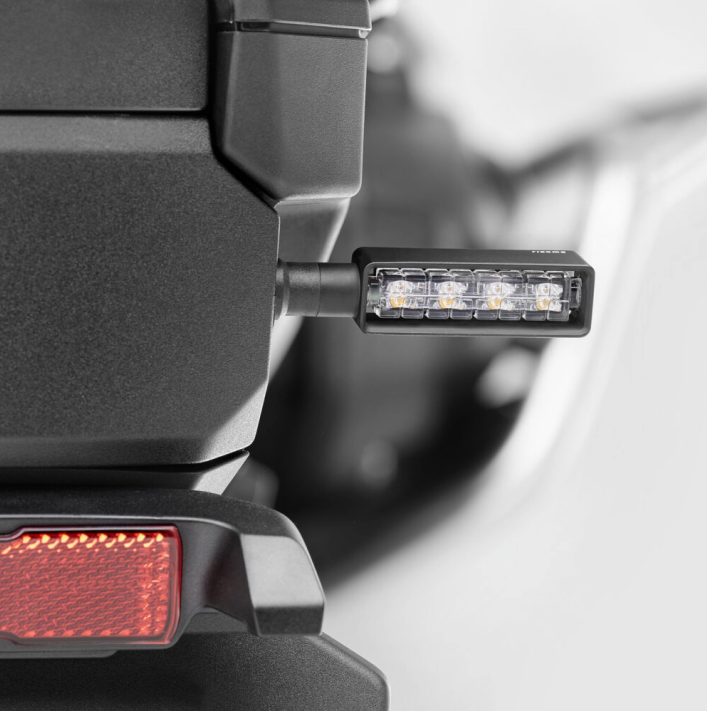

Layer is the perfect blend of cutting-edge technology and minimalist design.

With its die-cast aluminum frame and compact, intuitive shape, the turn signal seamlessly adapts to any motorcycle style, from naked to touring, highlighting and enhancing its personality.

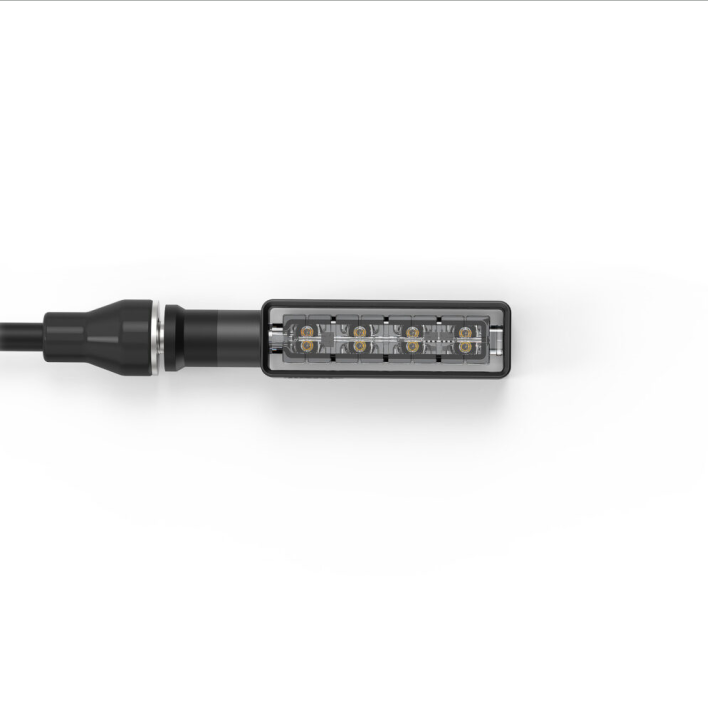

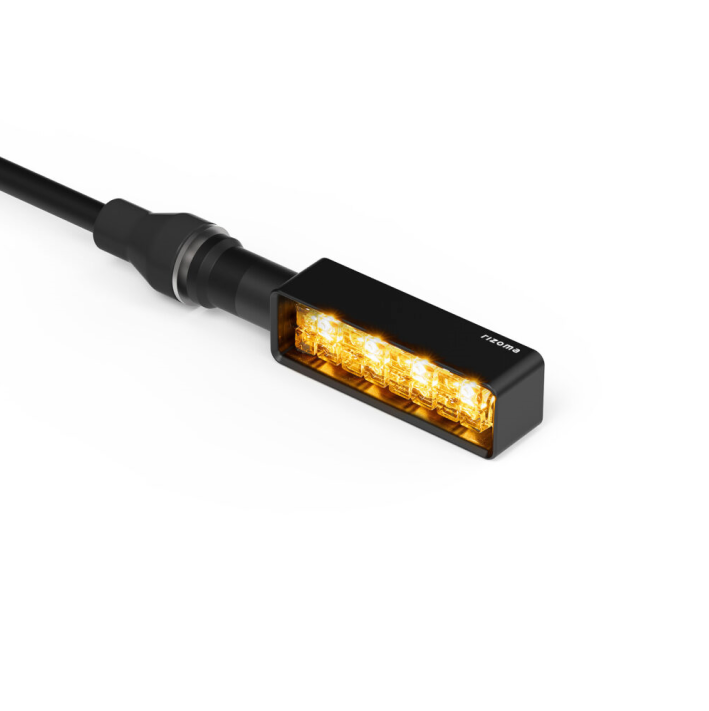

The suspended-effect light body creates a striking visual balance, brought to life by a modular micro-pattern lens. This refined detail not only boosts luminous intensity but also gives the front end a bold, unmistakable identity. Inside, years of experience and engineering excellence converge: the 8 SMD LEDs deliver a sequential light effect, offering exceptional visibility while maintaining an ultra-compact shape.

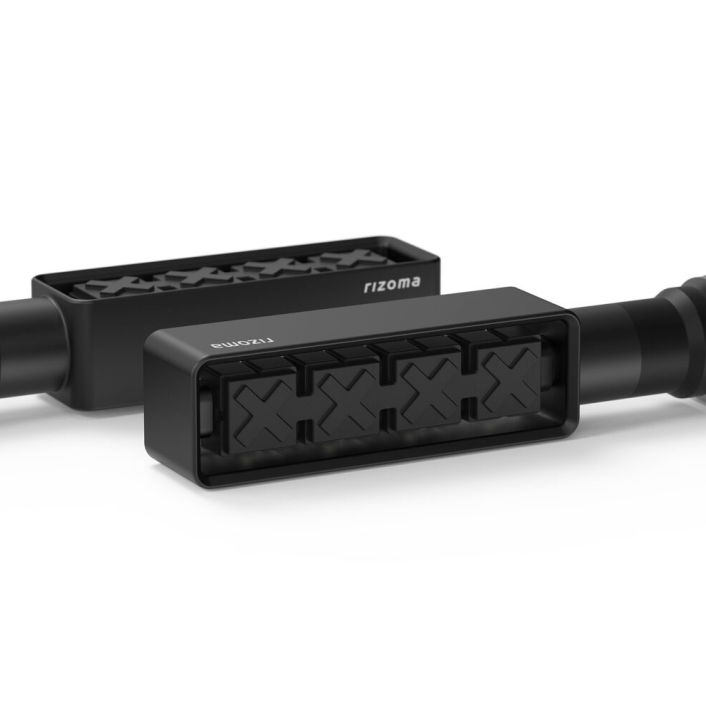

The design is completed by a rear cover with a dedicated x-shaped pattern and a mounting system equipped with impact-dampening technology, developed to ensure long-lasting durability, reliability and performance.

Layer turn signal complies with European homologation standards.





Mounting kit & info for FRONT signals

Warning: the mounting of the Layer turn signals (code TS140), with sequential light, does not guarantee the Front position Light / Daytime Running Light functions when integrated in the front OEM turn signals.

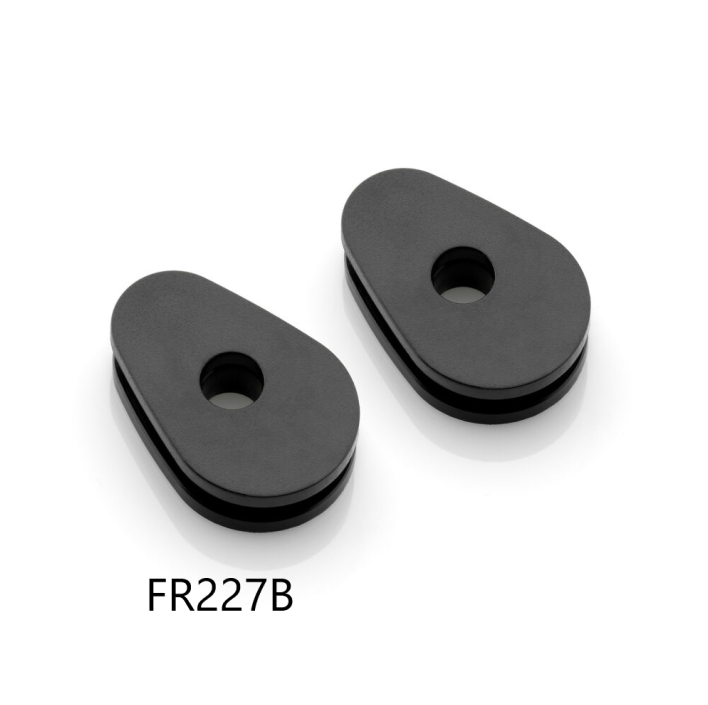

Mounting kit for Rizoma turn signals to fit OEM license plate support

FR227B

HKD 150 (pair)

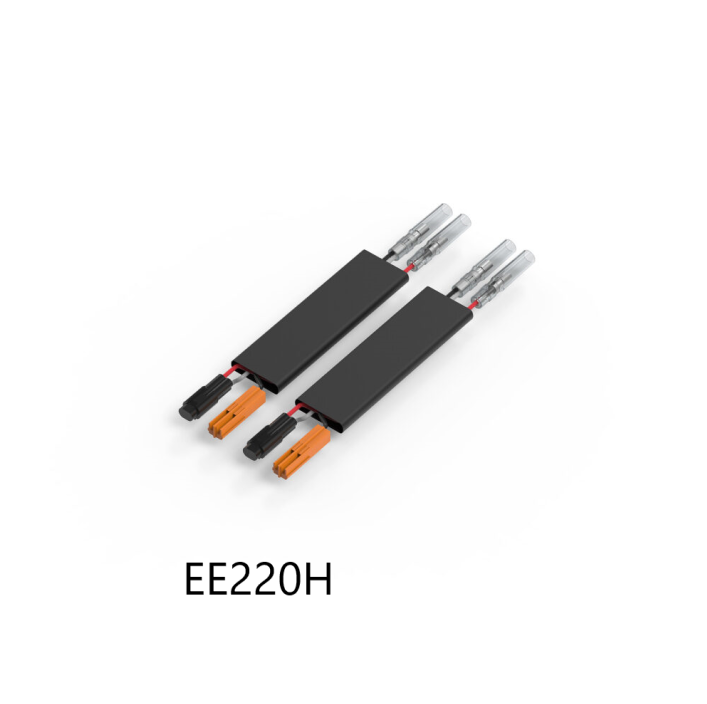

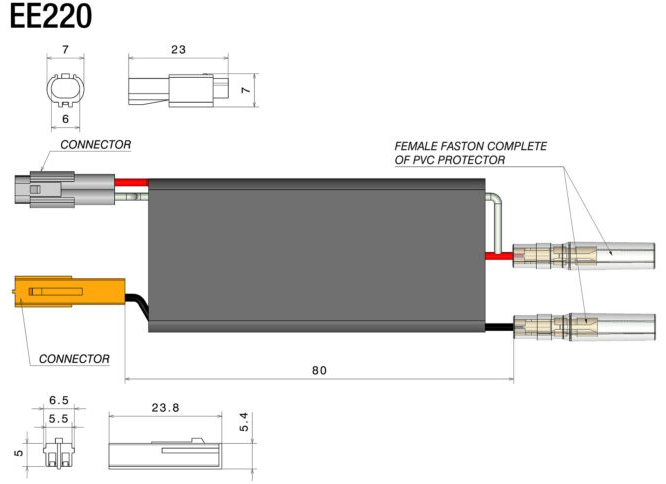

Wiring kit with resistors for front Rizoma turn signals

2 W / 100 Ω and 3 W / 47 Ω

EE220H

HKD 490 (pair)



Mounting kit & info for REAR signals

Warning: the mounting of the Layer turn signals (code TS140), with sequential light, does not guarantee the Front position Light / Daytime Running Light functions when integrated in the front OEM turn signals.

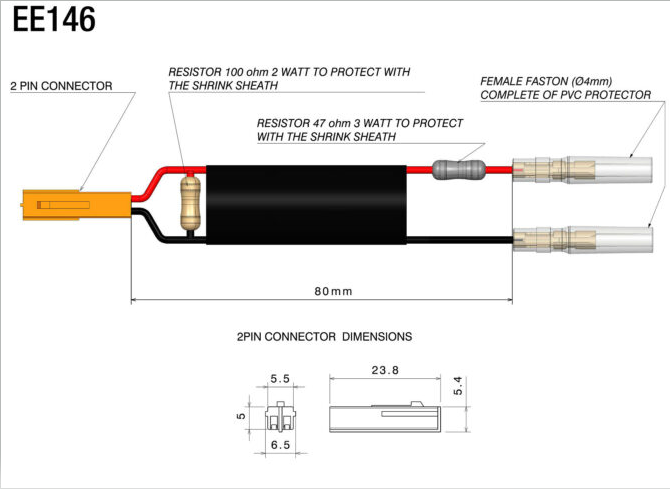

Wiring kit with resistors for Rizoma turn signals

2 W / 100 Ω and 3 W / 47 Ω

EE146H

HKD 400(pair)

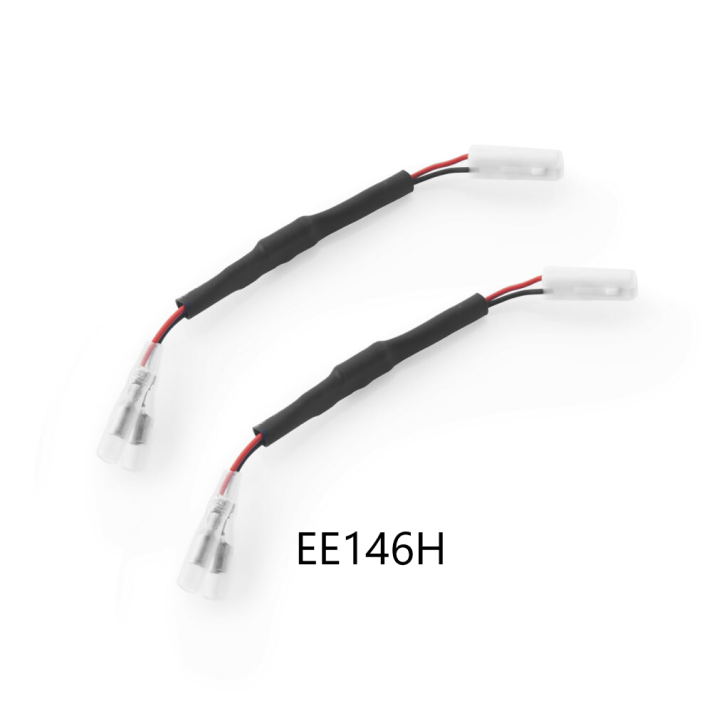

EE146H: Wiring kit for rear Rizoma turn signals

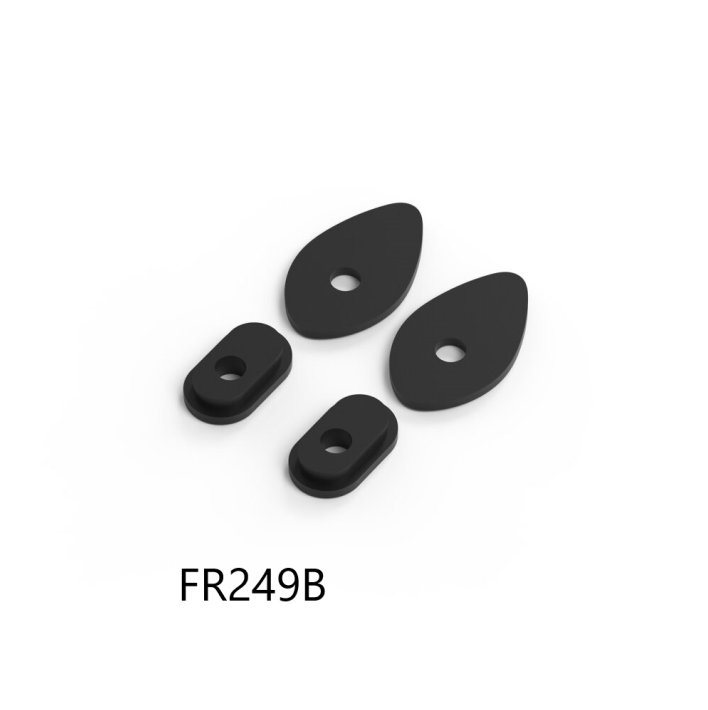

Mounting kit for turn signals

FR249B

HKD 350 (pair)



FR249B: Mounting kit for Rizoma rear turn signals. One kit contains 2 pieces.



Technical information

Kit is composed by: (2x) Layer sequential lighting turn signals, (2x) washer and fastening nut kit, (2x) turn signal thread cap.

Use of the very latest SMD LED technology ensures compliance with European homologation standards.

Functions: TURN SIGNAL (12 V / 1.5 W / 8 LED)

M8 THREAD

To fit the turn signals, the wiring kit is required.



When replacing OEM turn signals with the Rizoma Layer, with sequential flashing, to avoid incompatibility due to the resistors and the OEM electronic control unit, Rizoma always recommends the substitution of four Layer turn signals, two in front position and two for the rear (excluding cases where the turn signals are integrated in the front optical unit, in the rear-view mirror or in the front fairing).
