CBR600RR(24-26)Rizoma turn signals with technopolymer holder

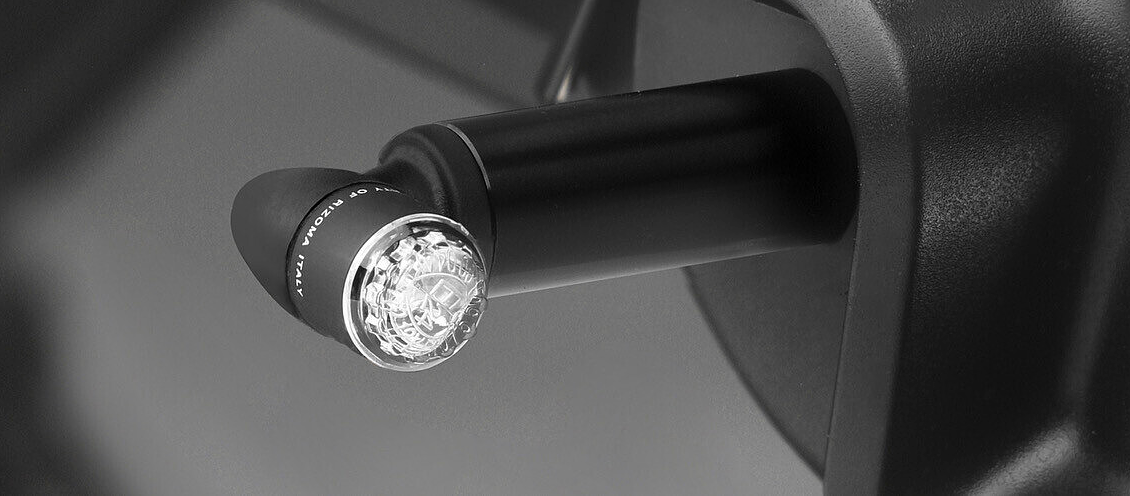

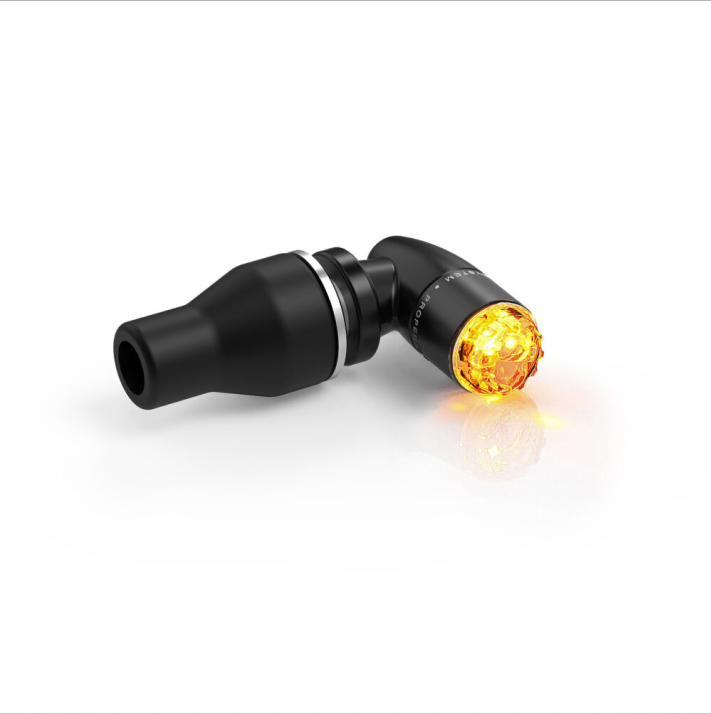

Light Unit with technopolymer holder



The Light Unit with technopolymer holder kit, thanks to its latest-generation SMD LED technology, guarantees high lighting intensity and represents one of the smallest option of its product category in compliance with European homologation standards.

A pragmatic design that, despite of its tiny dimensions, perfectly satisfies its function. In Light Unit the light beam develops longitudinally in respect to the turn signal fastening point (instead of at 90°, as most commonly occurs in other turn signals), increasing application ease and mounting possibilities. So, Light Unit, represents a new and innovative concept for Rizoma's turn signals, a light-signaling device that can be effectively fitted in several options according to the specific user’s needs, without sacrificing aesthetic. These plus are actually the cornerstones of its patent.

FR440B technopolymer holder included.



Mounting kit & info for FRONT signals

Warning: the installation of Rizoma front turn signals does not compromise the Front position Light / Daytime Running Light functions when integrated in the front OEM indicator lights.

Mounting kit for Rizoma turn signals to fit OEM license plate support

FR227B

HKD 150 (pair)

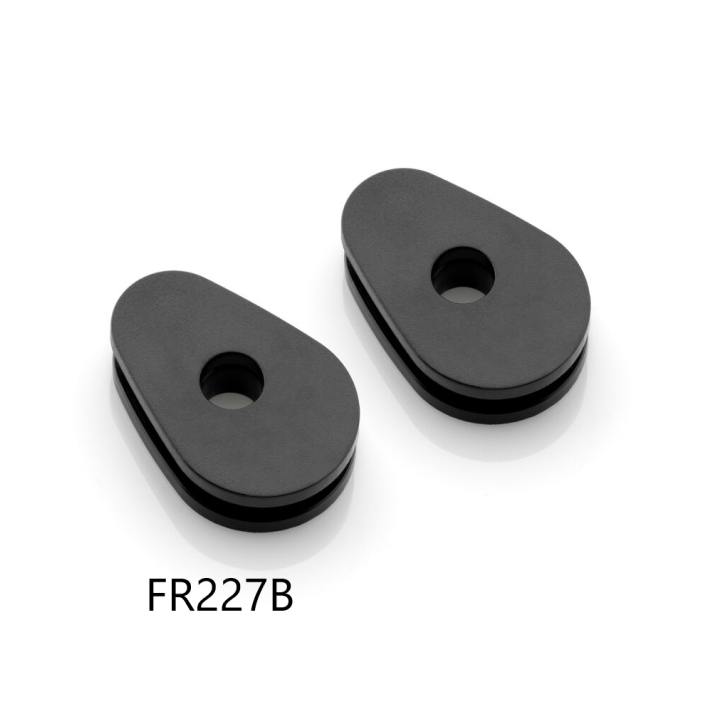

FR227B: Mounting kit for Rizoma front turn signals.



Wiring kit with resistors for front Rizoma turn signals

2 W / 100 Ω and 3 W / 47 Ω

EE220H

HKD 490(pair)

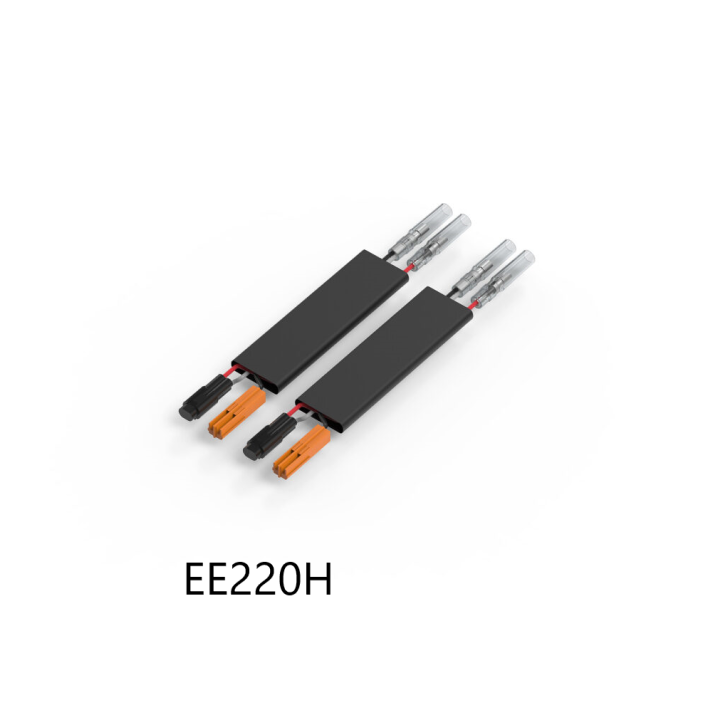

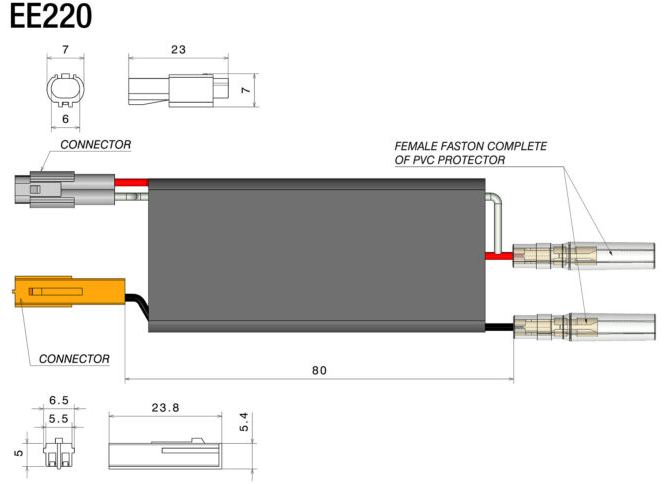

EE220H: Wiring kit for front Rizoma turn signals.

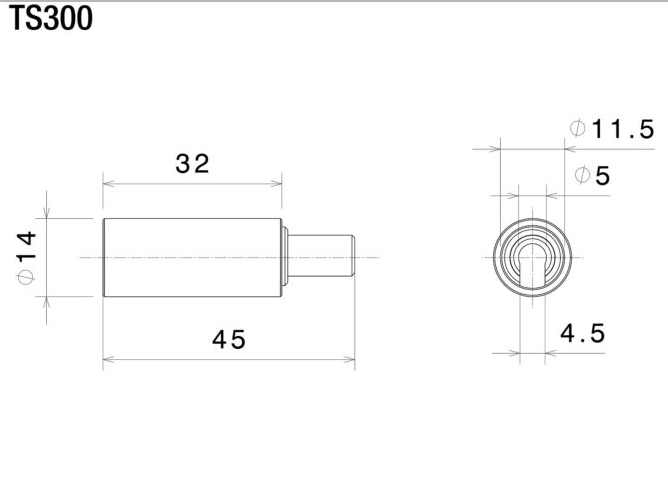

Spacer for turn signals

EURO4

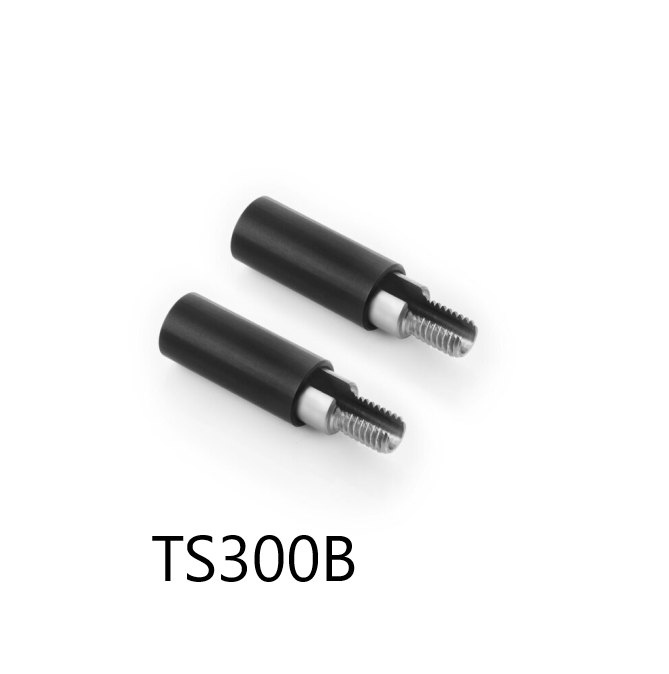

TS300B

HKD 1220 pair



Mounting kit & info for REAR signals

Warning: the installation of Rizoma front turn signals does not compromise the Front position Light / Daytime Running Light functions when integrated in the front OEM indicator lights.

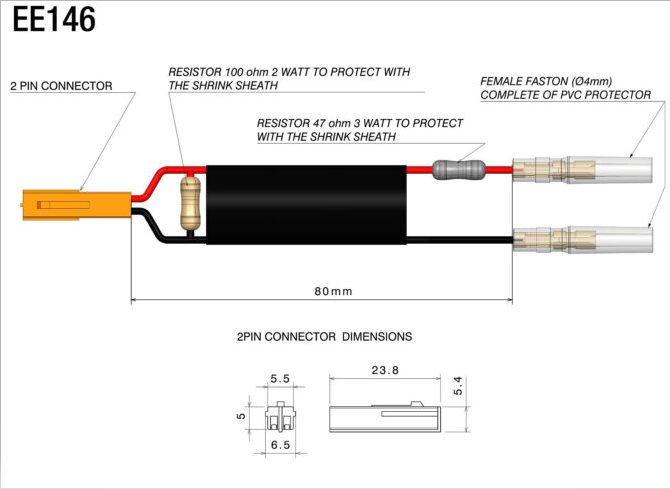

Wiring kit with resistors for Rizoma turn signals

2 W / 100 Ω and 3 W / 47 Ω

EE146H

HKD 400 pair

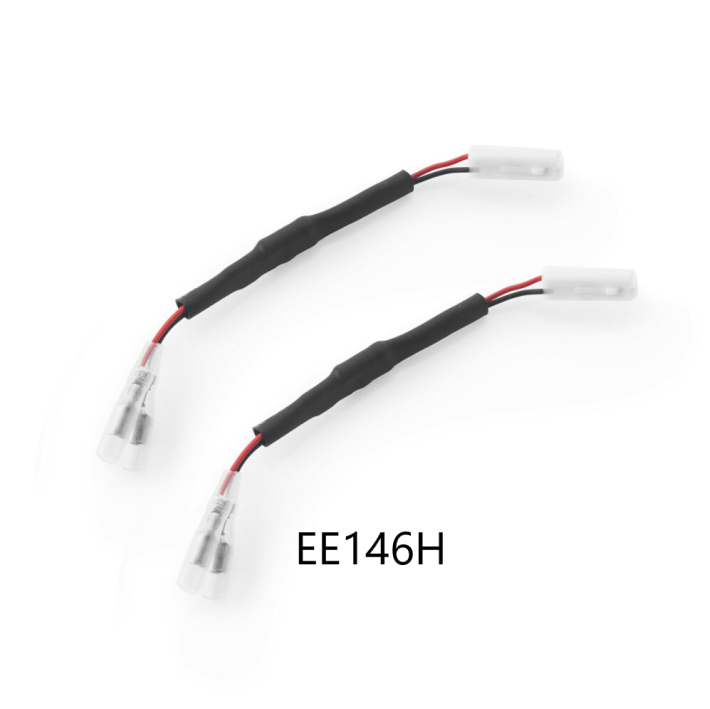

EE146H: Wiring kit for rear Rizoma turn signals



Mounting kit for turn signals

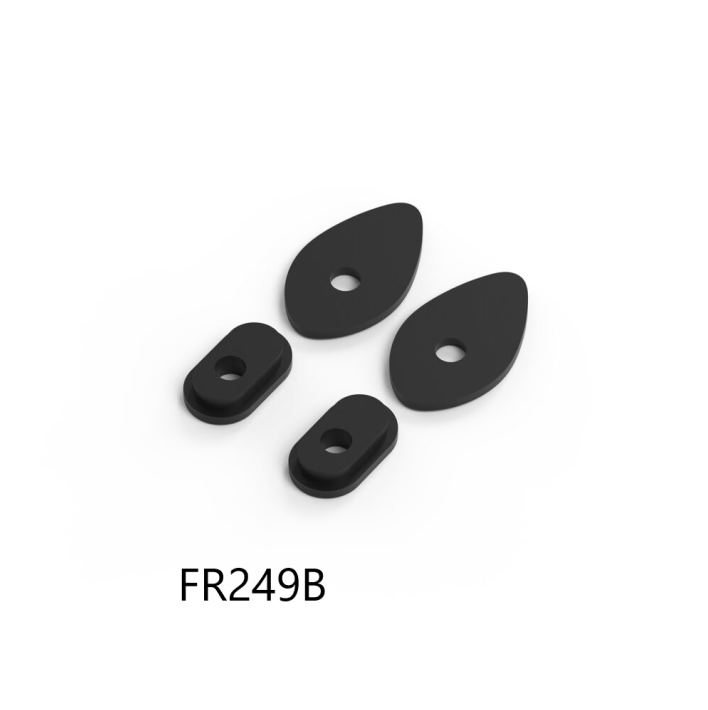

FR249B

HKD 350 pair



FR249B: Mounting kit for Rizoma rear turn signals. One kit contains 2 pieces.



Spacer for turn signals

EURO4

TS300B

HKD 390 pair

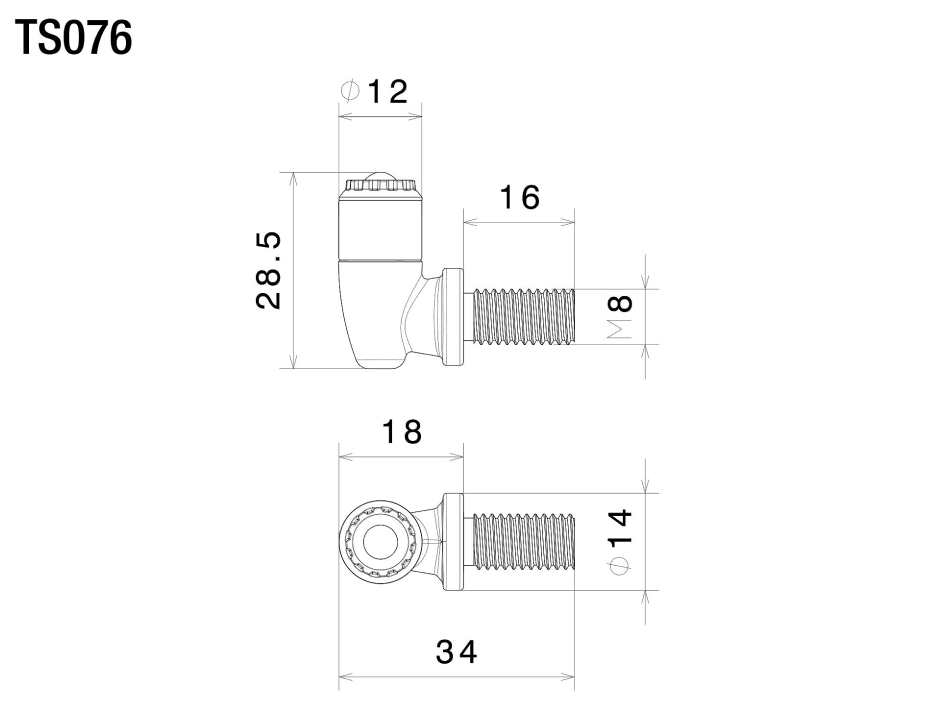

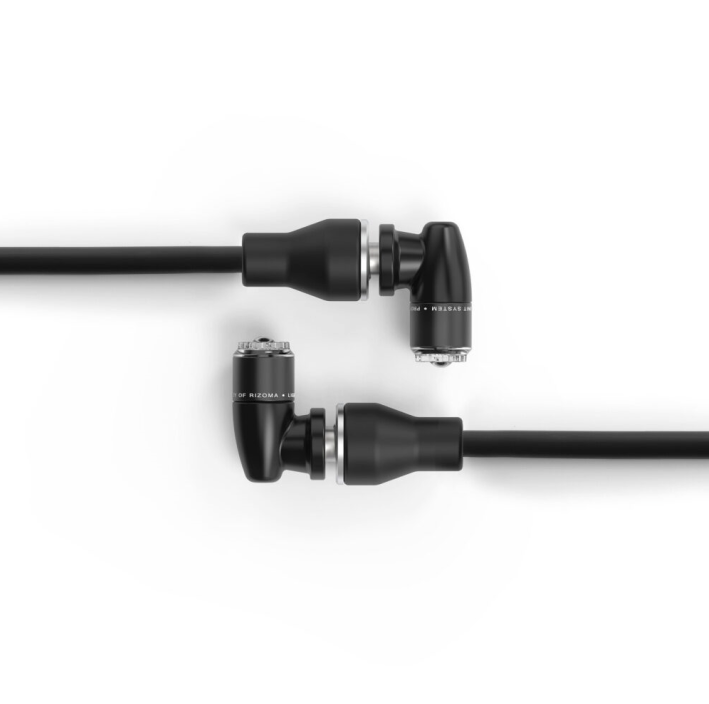

Light Unit with technopolymer holder

Matt Black|Front/Rear|TS076BM



Technical information

Use of the very latest SMD LED technology ensures compliance with European homologation standards.

Functions: TURN SIGNAL (12 V - 1.5 W)

M8 THREAD / Indicator tightening wrench included.

FR440B technopolymer holder included.

To fit the turn signals, the wiring kit is required.



To avoid errors in bikes equipped with a control indicator on the dashboard (only BMW R nine T models from 2017 onwards), we recommend installation of the resistance kits EE149H (3 W - 38 Ω).



The fitting of the Light Unit turn signals provides different options.

FRONT POSITION

- In OEM configuration by using the Rizoma front turn signal mounting kit in combination with technopolymer holder FR440B (included).

REAR POSITION

- In OEM configuration by using the Rizoma rear turn signal mounting kit in combination with technopolymer holder FR440B (included).

- On Rizoma license plate support, which already contains mounting kit for rear turn signals, in combination with technopolymer holder FR440B (included).

The mounting of Light Unit on your bike, both in front and rear options, always requires the appropriate Rizoma turn signal wiring kit which are to be purchased separately.
