MT-09(24-26)Rizoma front brale fluid reservoir Next

Next Front brake fluid reservoir



With their unconventional styling, NEXT fluid reservoirs offer a distinctive take on what used to be a purely functional concept. Made from billet aluminum with a transparent reservoir, with surface anodizing. TÜV/ABE certified, available in different sizes to cover various applications.

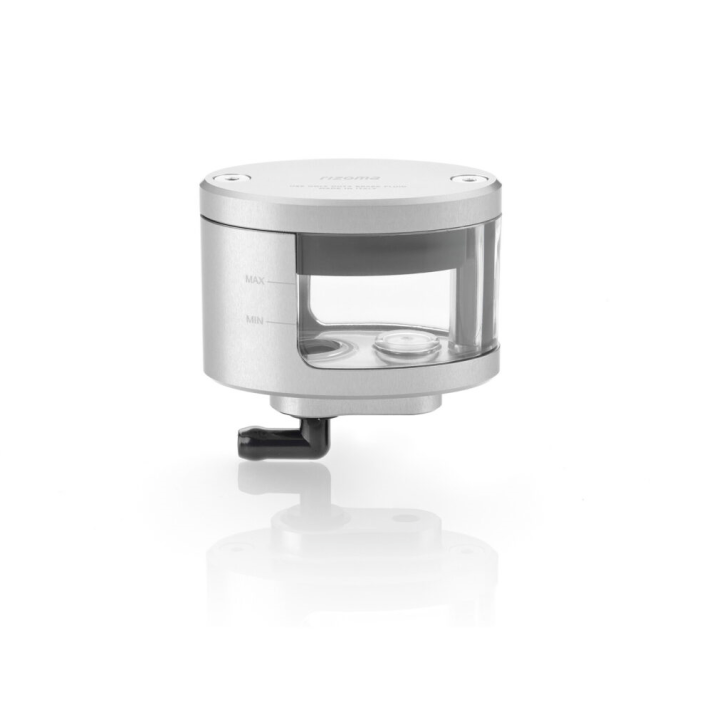

CT127A      Silver

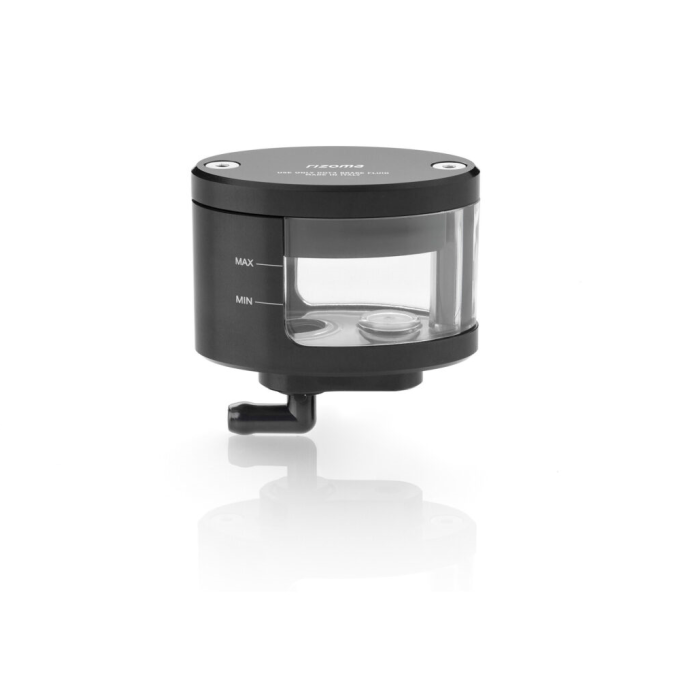

CT127B      Black

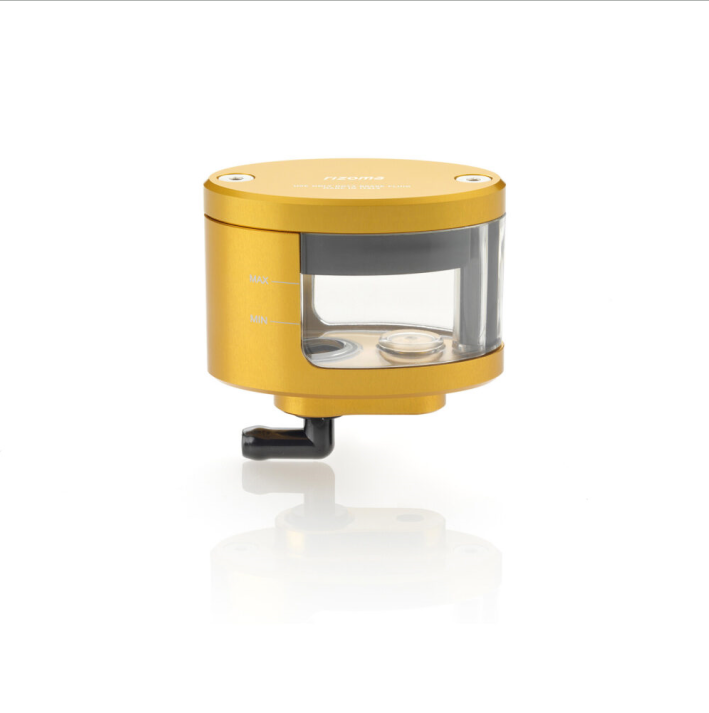

CT127G      Gold

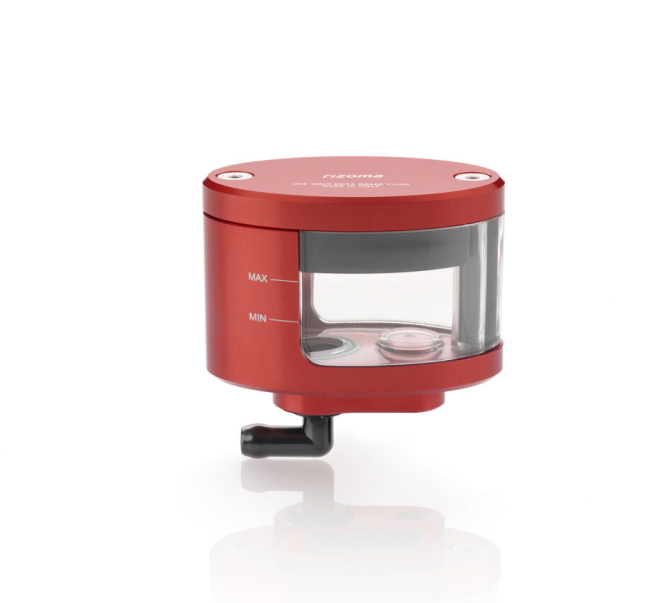

CT127R      Red

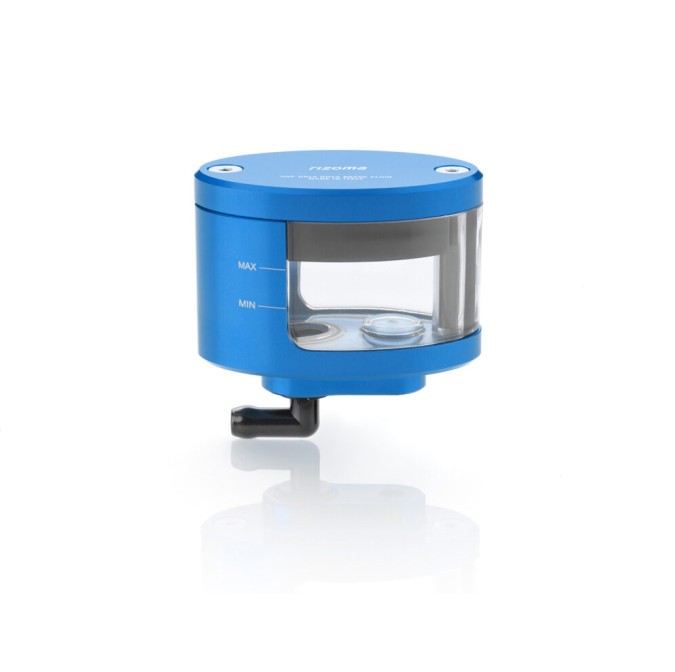

CT127U      Blue



Mounting kit & info

Warning: this product requires assembly by qualified personnel to ensure safety.

Mounting kit for Rizoma fluid reservoir

CT454B

HKD 240



The mounting of the front brake fluid tank requires the CT454B adapter.



Next Front brake fluid reservoir

Silver|V 27 cm3 / H 51,5 mm / Ø 40-65 mm|27|Front brake|CT127A



Technical information

Warning: the Rizoma fluid reservoirs do not fit on bikes equipped with brake and clutch fluid reservoirs integrated with the pump.

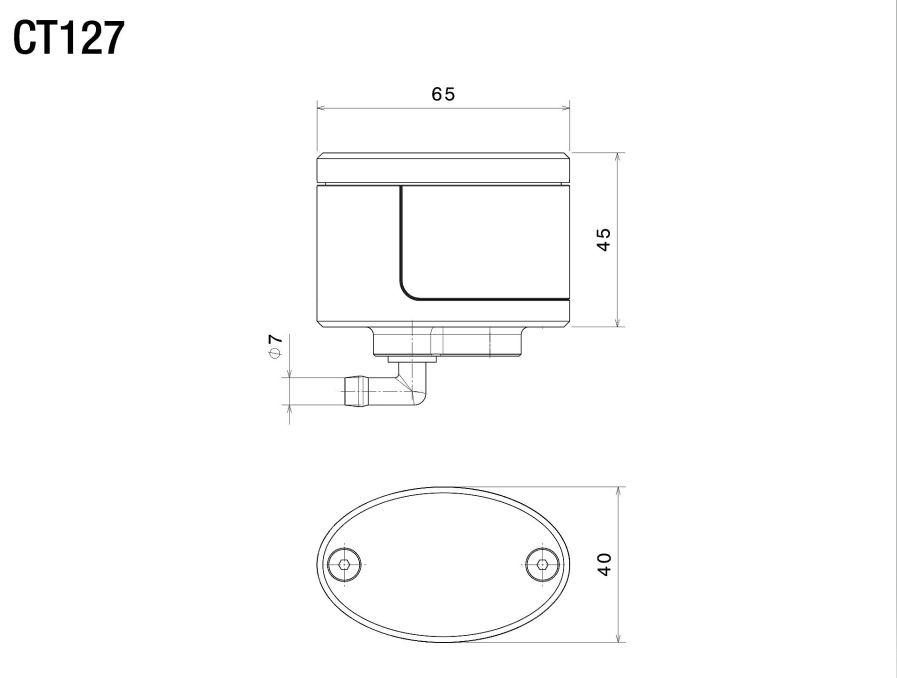

Volume: 27 cm3 - Height: 51.5 mm - Ø min. 40 mm / Ø max. 65 mm.

Fluid reservoirs are supplied with an EPDM gasket and are compatible with DOT 3/DOT 4/DOT 5.1 oils only. Not compatible with Hydraulic Mineral Oil.

Recommended use: front brake pump.

The kit includes 3 nozzles (1 x Ø 7 mm, ang. 90° + 1 piece Ø 8 mm, ang. 90° + 1 piece Ø 8 mm).

Adapters are required for assembly.
