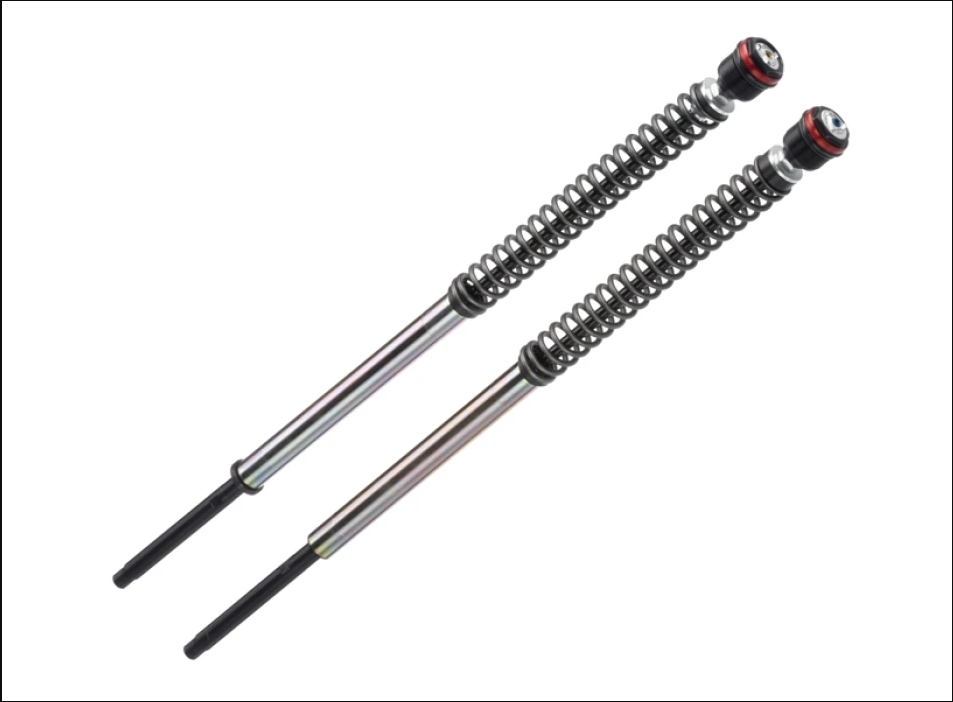

Ninja 400(18-24)Bitubo cartridge

Pressurized cartdrige adjustable: spring preload, Rebound, Compression, without oil, Red ring (suggested oil code 997630 not included)



Pressurized cartridge offering more stability during braking offering the highest levels of riding safety.

Plug &Play, it requires no modification of the original components,and allows refitting the original suspension at any time.

Rebuildable in all its parts thus keeping the efficiency of the life of the Motorcycle.



EC = Easy Changer is the spring quick change system and new cartridge disassembly system, without the need to remove the fork from the bike. This system makes it quick to modify the hydraulic calibration by track technicians because it is enough to modify a single cartridge for compression or rebound.





ADJUSTMENTS:

Spring preload

Rebound

Compression

BOX INCLUDES: Assembly instructions indicating oil viscosity, oil level recommended by our Develp.Team.



POSSIBLE ACCESSORIES:  Adjustment top cover (no logo or customized)
