GSX-S1000F(DG) SW-Motech Universal X-Grip-Kit smartphone

Universal X-Grip Kit for large smartphones

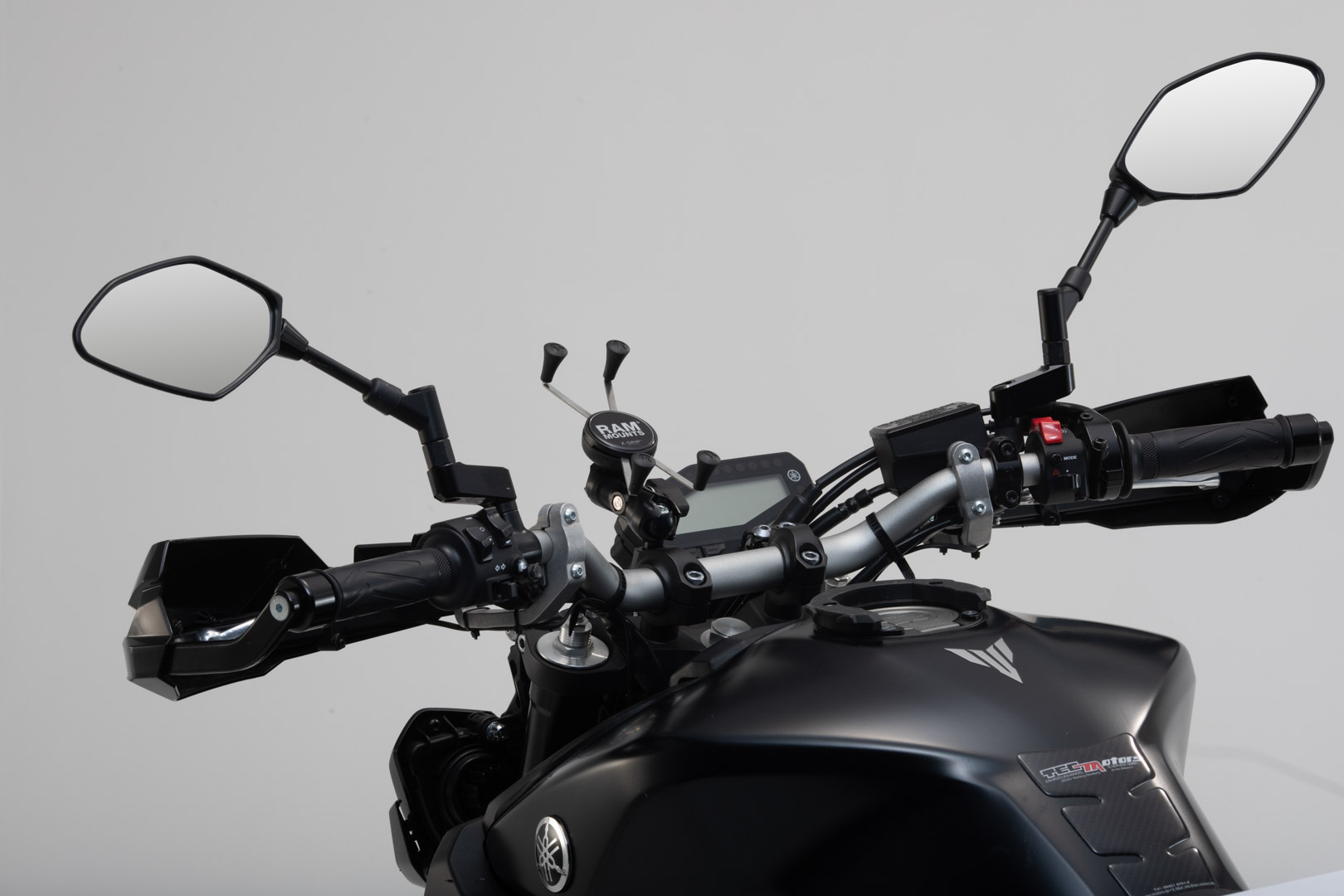

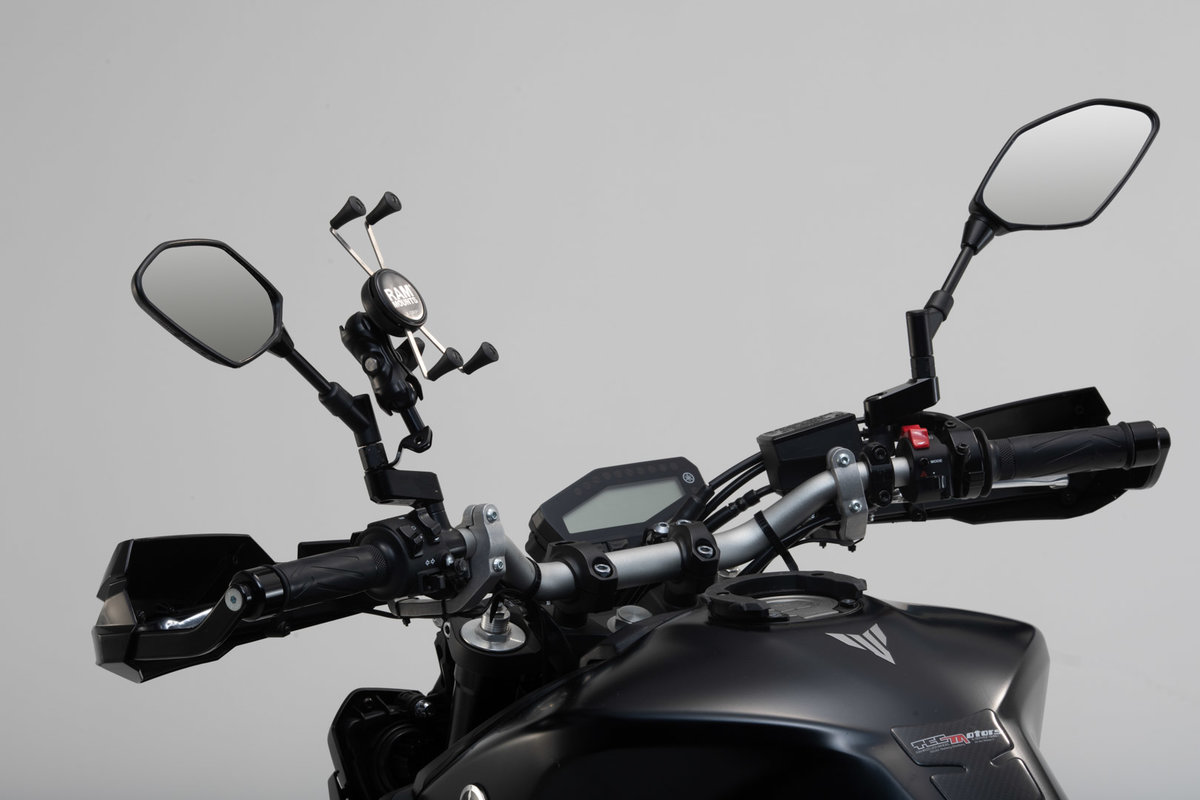

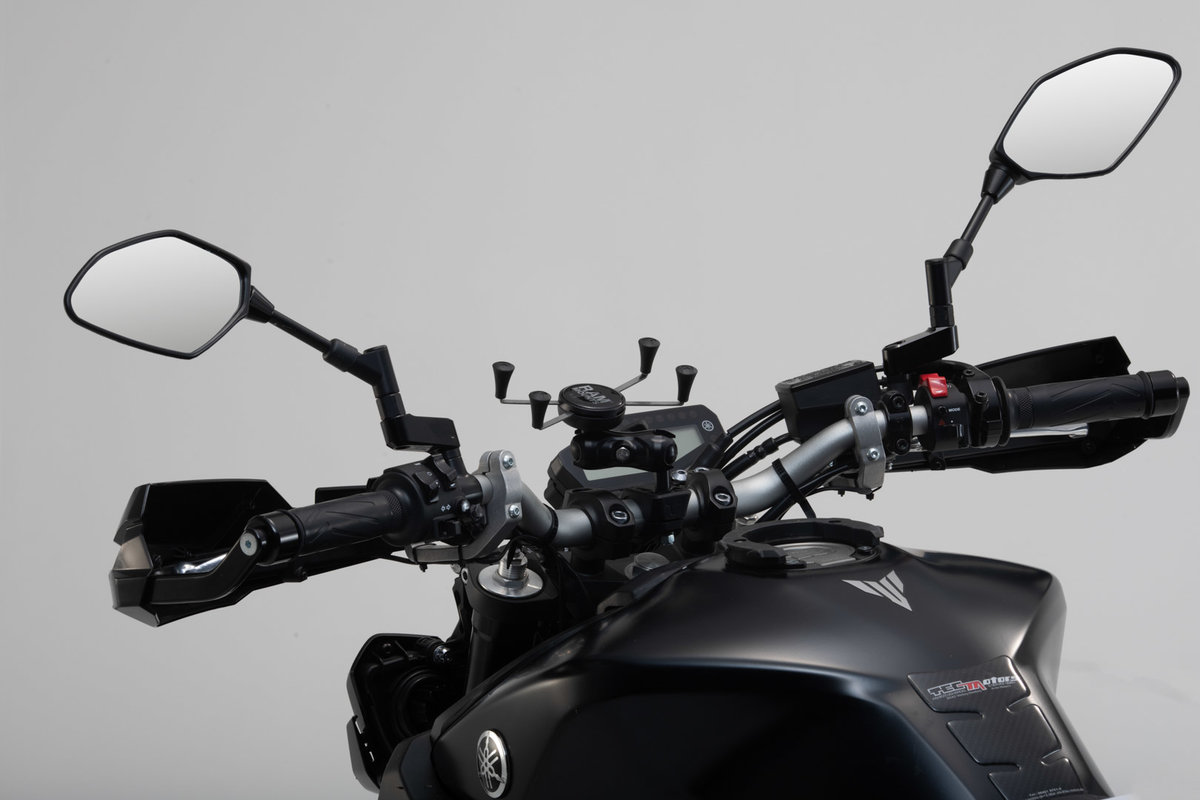

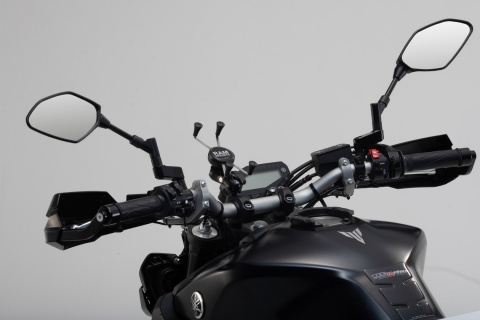

This versatile kit is suitable for securely fastening a large smartphone or smartlet to (almost) any motorcycle. The X-Grip clampcaptivates with its versatility - it provides secure grip for smartphones and can be flexibly adjusted on a RAM arm with the 1" adapter ball. The rubber fingers of the clamp arms have the smartphone firmly in their grasp and guarantee a clear view and access to the device at the same time. The Universal Kit included in delivery offers a "variety of different attachment options. The included 1" ball can be mounted on an M6 or M8 thread, on the mirror thread holder or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22.28 mm or 1 in. The socket arm we developed is pivotable in two axes up to 90° or 45° and facilitates positioning in the cockpit - this way the display is always in view without obscuring the view of the instruments.

Features of the RAM X-Grip IV clamp

• Versatile holder with clamping arm and 1" adapter ball
• Rubberized support finger for secure hold
• A rubber mount additionally secures the smartphone
• For smartphones with a width of 4.4 to 11.4cm
• For smartphones with a maximum thickness of 2.22cm

• Material: Stainless steel / Composite plastic
• Color: Silver / Black

Mounting

• Balls and pivoted socket arm allow individual positioning
• Socket arm is on two axes and pivotable up to 90° or 45°, length: 55 mm (2.2"), for support balls ø 24 - 25.5 mm (approx. 1")

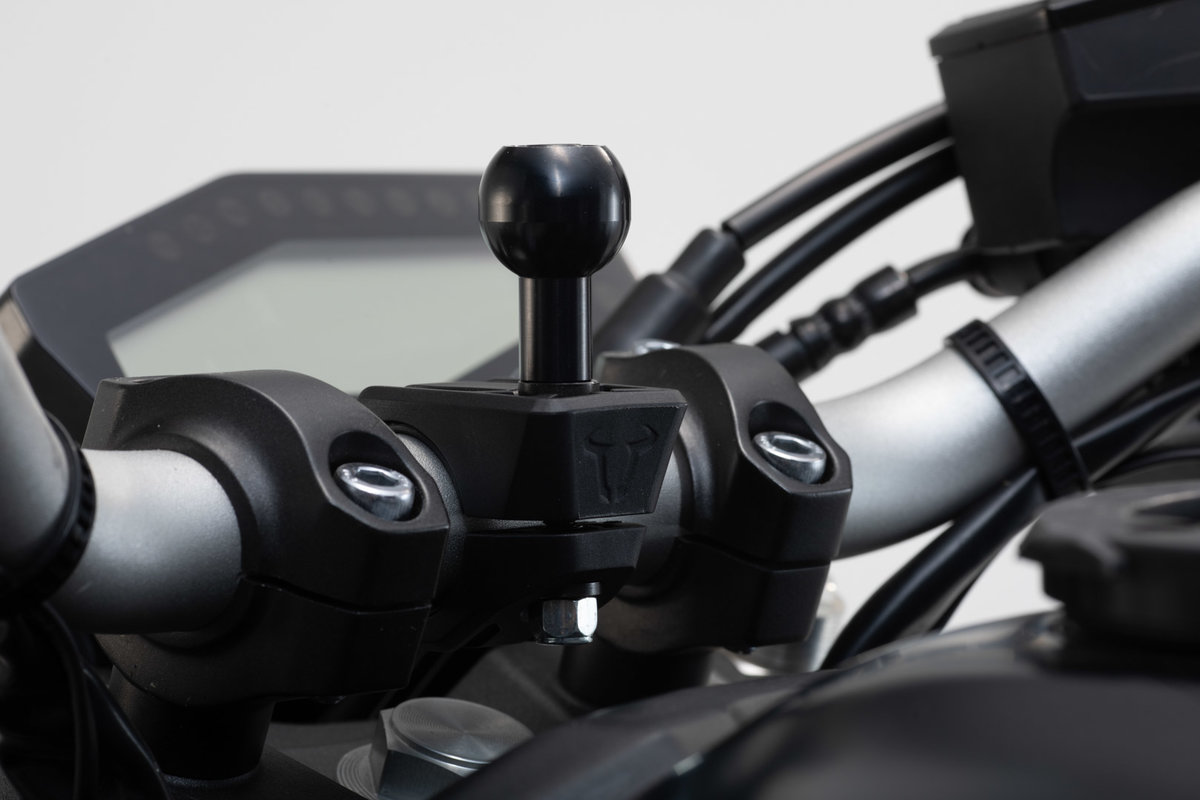

• Different mounting variations: 1" ball can be mounted on an M6 or M8 thread, on the mirror thread holder or with a mounting clamp

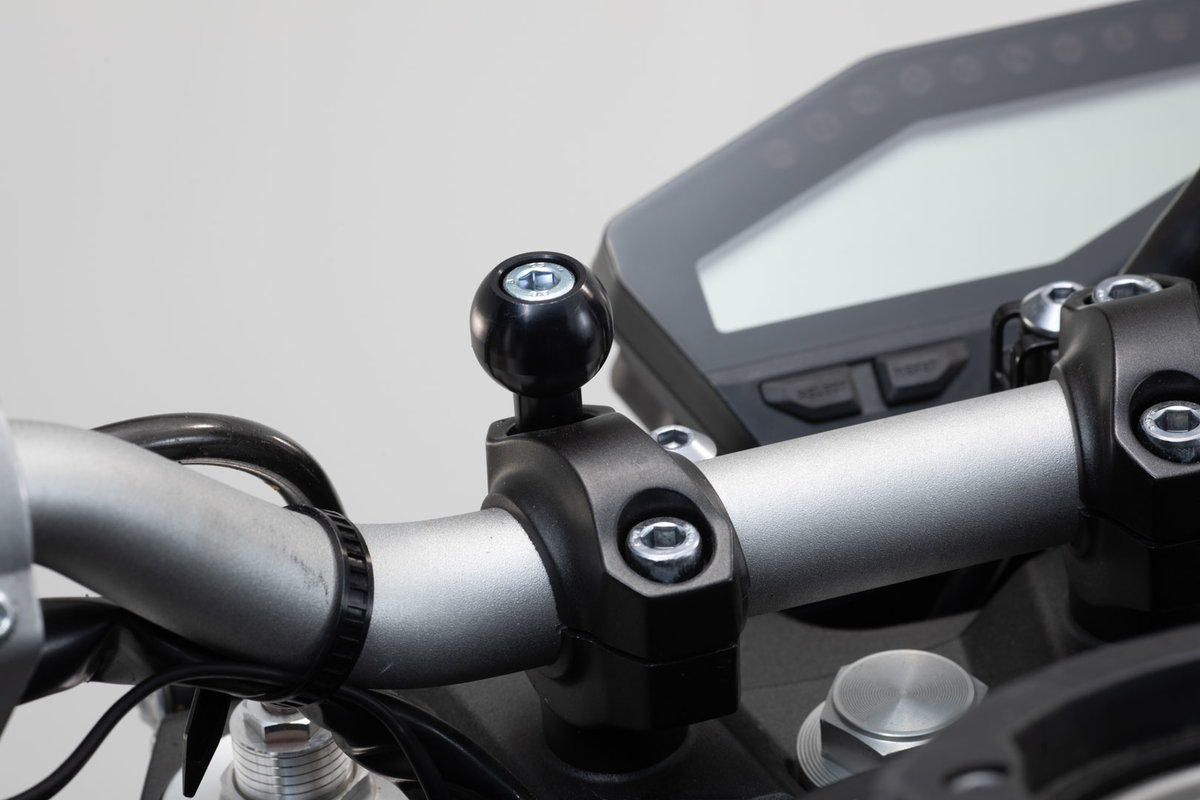

• Mounting clamp for handlebars with a diameter of 22.28 mm or 1"
• No additional accessories are required for the installation

Note

• Particularly slim devices (with minimum width of 4.4cm) must be taller than 14.6cm.
• The use of a waterproof protective case is recommended. The smartphone with protective case must not exceed the specified maximum width and thickness.

Included in delivery

• RAM X-Grip IV clamp for large smartphones
• Rubber mount
• Socket arm
• Mounting clamp with rubber inserts
• Ball with M8 thread and M6 converter
• Mirror thread holder
• Mounting material
• Mounting instructions
